XIDO Fully Automatic Down & Feather Filling Machine

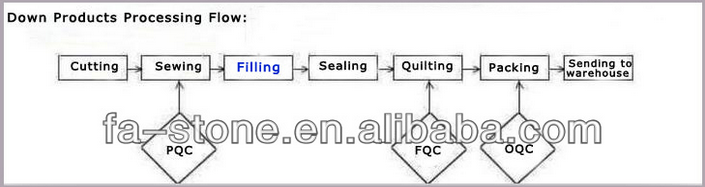

Duck / Goose Down Jacket Making Flow Chart
The down jacket product needs to go through the above processes to be made. Among these processes , the filling process is the most difficult one.Because it is hard to balance the filling speed and the down quantitative precision at the same time. With the manual method, only skilled workers can do a much better job. However, skilled workers are rare and it takes years of practice for an Inexperienced worker to be a skilled down filling master.
X IDO Fully Automatic Down Jacket Filling Machines are created to solve the problems bothering the down product manufacturers during the down filling process.
Duck Down Jacket Filling Machine Advantages:
Fully Automatic Down Filling Machine is Highly efficient. The triple-weighing system enables contious high-speed filling
Duck Down Filling Machine is Labor-saving.Every single port is operated by one person and the can supply2-3 assembly lines.
Duck Down Filling Machine has High quantitative precision, 0.03g can be reached
Duck Down Filling Machine is Fully-automatic and easy-operated
Duck Down Filling Machine is Environment-friendly. The whole process is proceeded in the sealed space, which guarantees theclean working environment.
Quality guaranteed. The important parts are imported from the best suppliers abroad.
Duck Down Jacket Filling Machine Display:

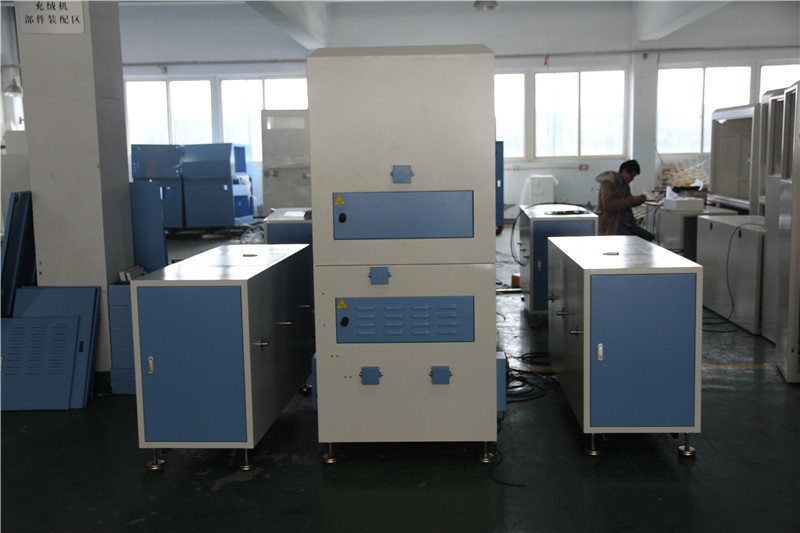

The Whole Set of Duck Down Jacket Filling Machine Looking From The Side Angle

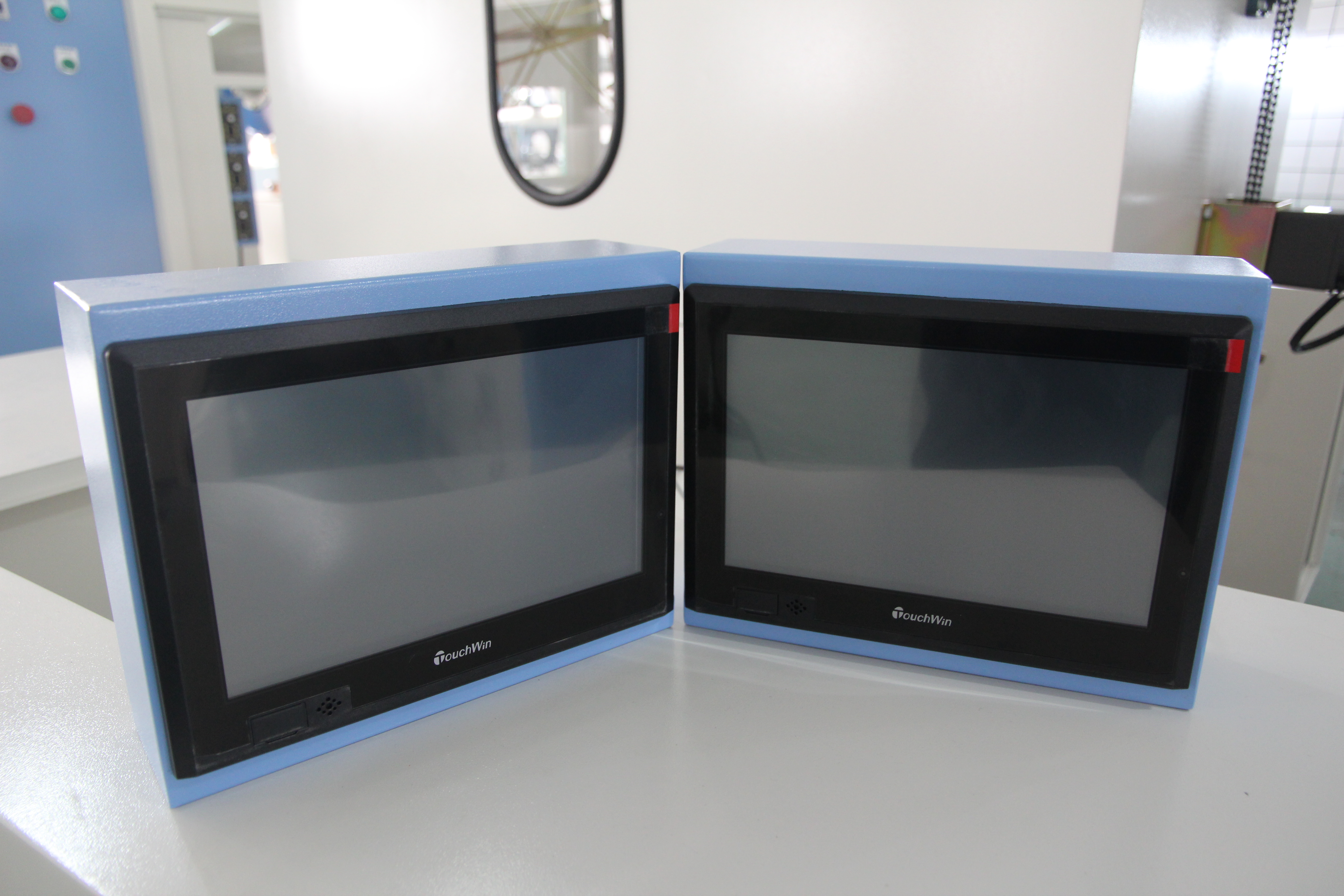

The Touch Screen Which Can Save Up to 100 Data Enable Both
Single Quantity Filling And Multiple Quantity Filling

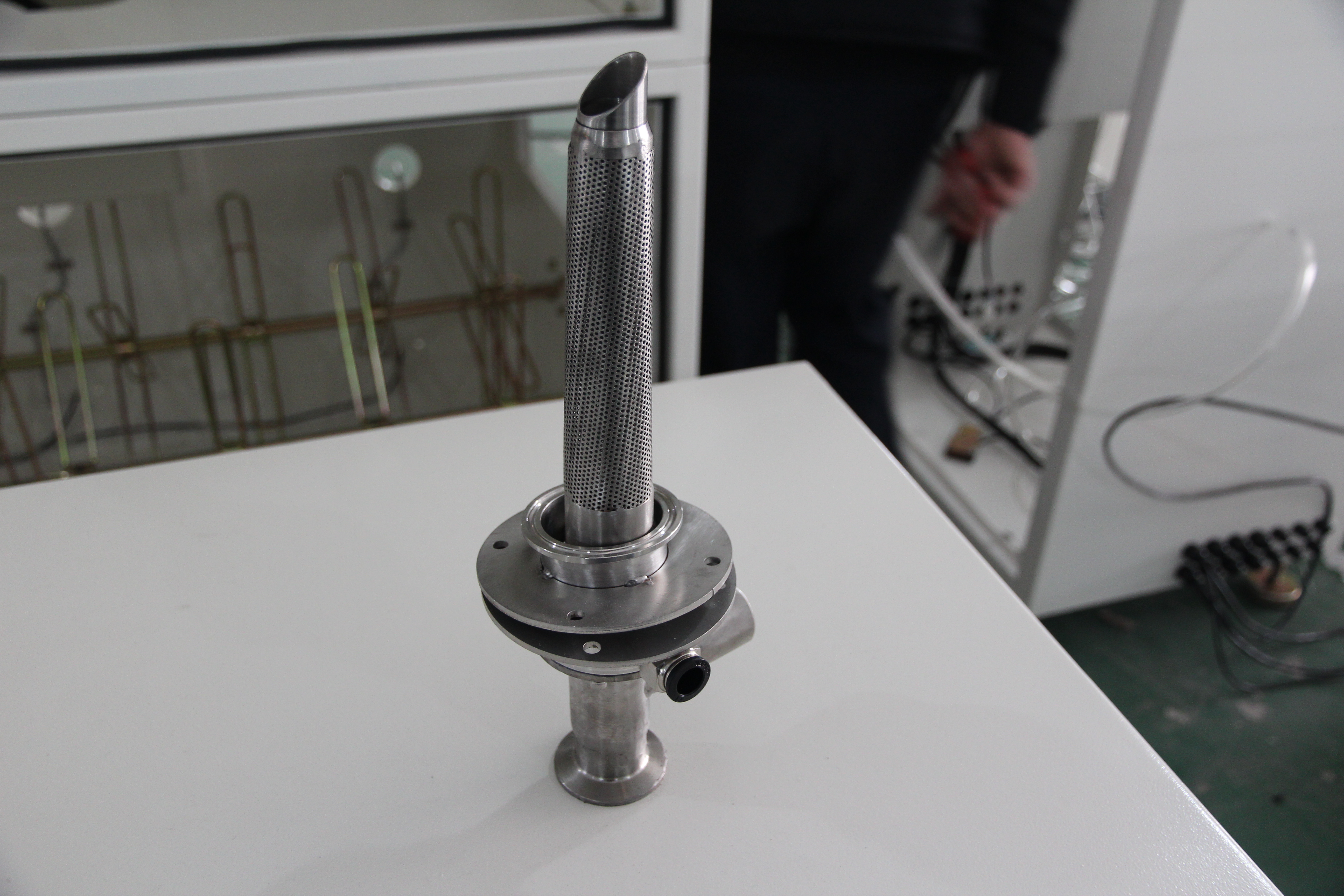

Duck Down Jacket Filling Machine Has Filling Nozzle With Good Permeability

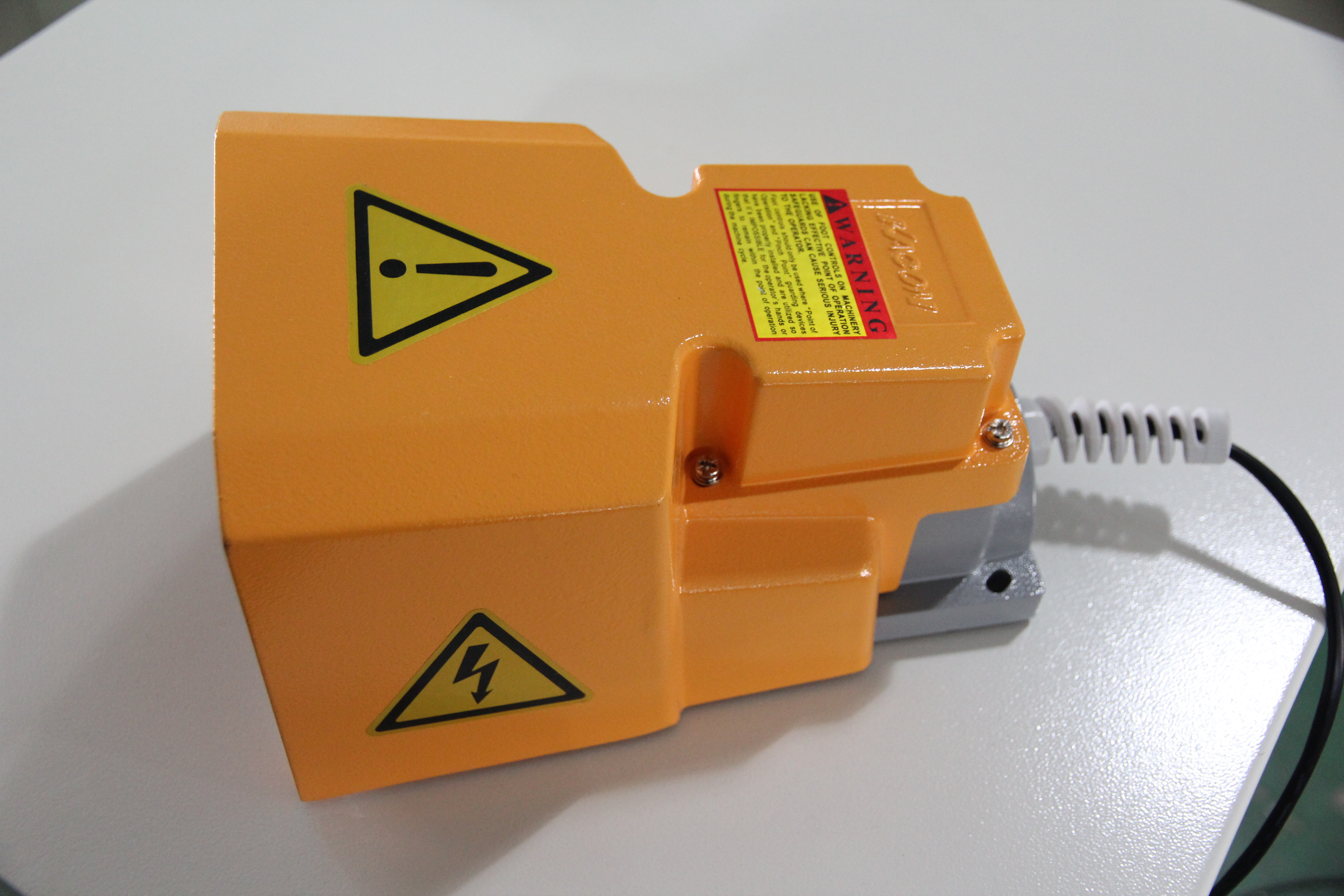

The Paddle. Finish A Whole Intact Filling With One Paddle
The Spare Parts. The Key Parts Are Imported From The Best Suppliers Abroad
Working Principle of Duck Down Jacket Filling Machine
The goose down jacket filling machine, the High-pressure air is used to absorb the down through the automatic weighing device and to fill the panel with a preset weight of down.
Down 60/40 up
Parameters of XIDO Duck Down Jacket Filling Machine
|
Model No. |
SCR-2P-6G |
Voltage |
220V 50Hz |
|
|
Dimensions |
4.3m×2.1m×2.1m |
Power |
Filling Machine |
1.5 kW |
|
Air compressor |
7.5 kW |
|||
|
Filling Material |
Down 60 Up |
Min Operating Air Pressure |
0.58 MPa |
|
|
Filling Speed |
4 g/s (adjustable) |
Weighing Ability |
0.1-25 g |
|
|
Filling Port |
2 Pcs |
Filling Accuracy |
± 0.05g |
|
|
Efficiency |
2~4 times than manual |
Down Storage Volume: |
8KGS |
|
|
N.W/G.W |
650kg/1000kg |
Min Operating Space Size |
4×6 m |
|
Duck Down Jacket Filling Machines Receive One Hundred Percent Of Good Feedback From Our Clients

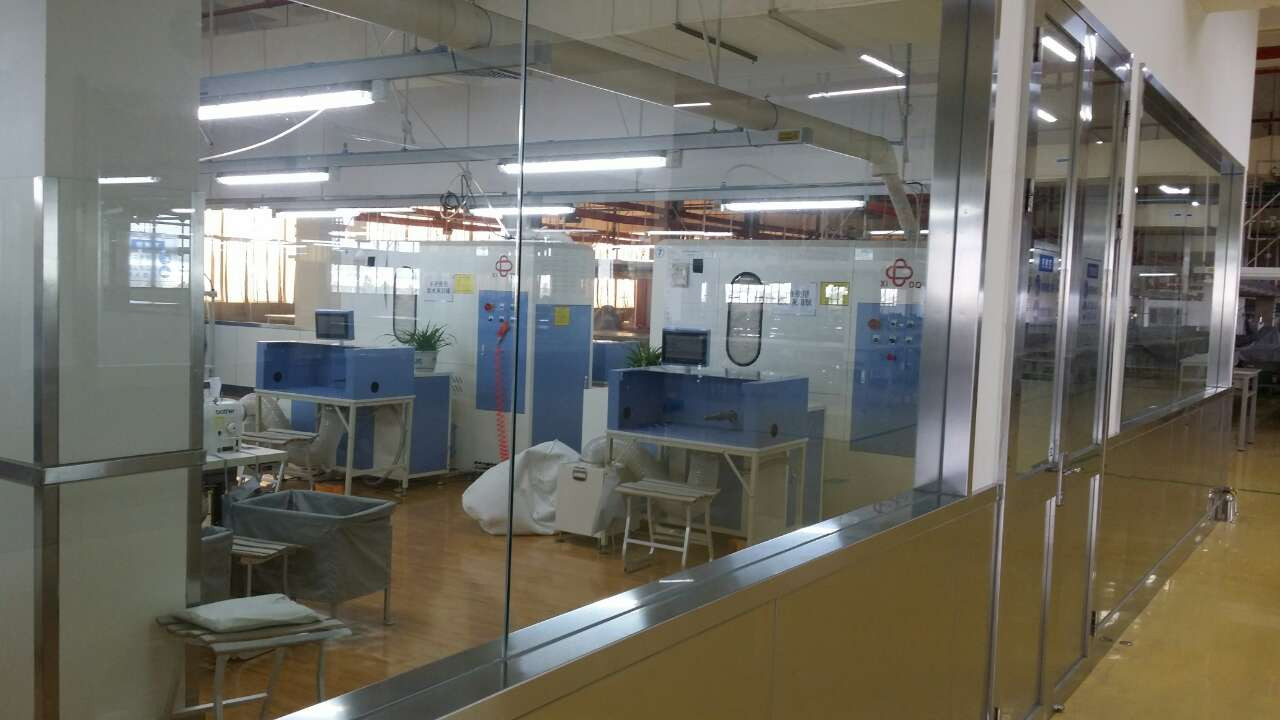

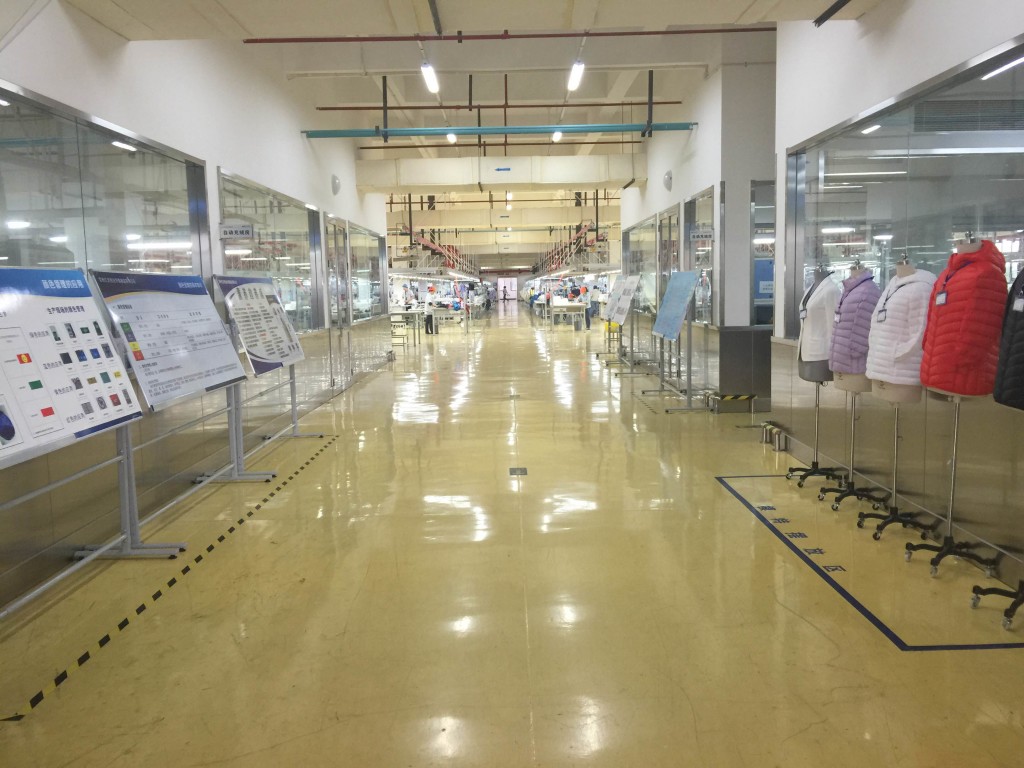

Pictures Taken From One Of The Largest Uniqlo Down Jacket OEM Factory In China
Duck Down Jacket Filling Machine Patents & Certificates

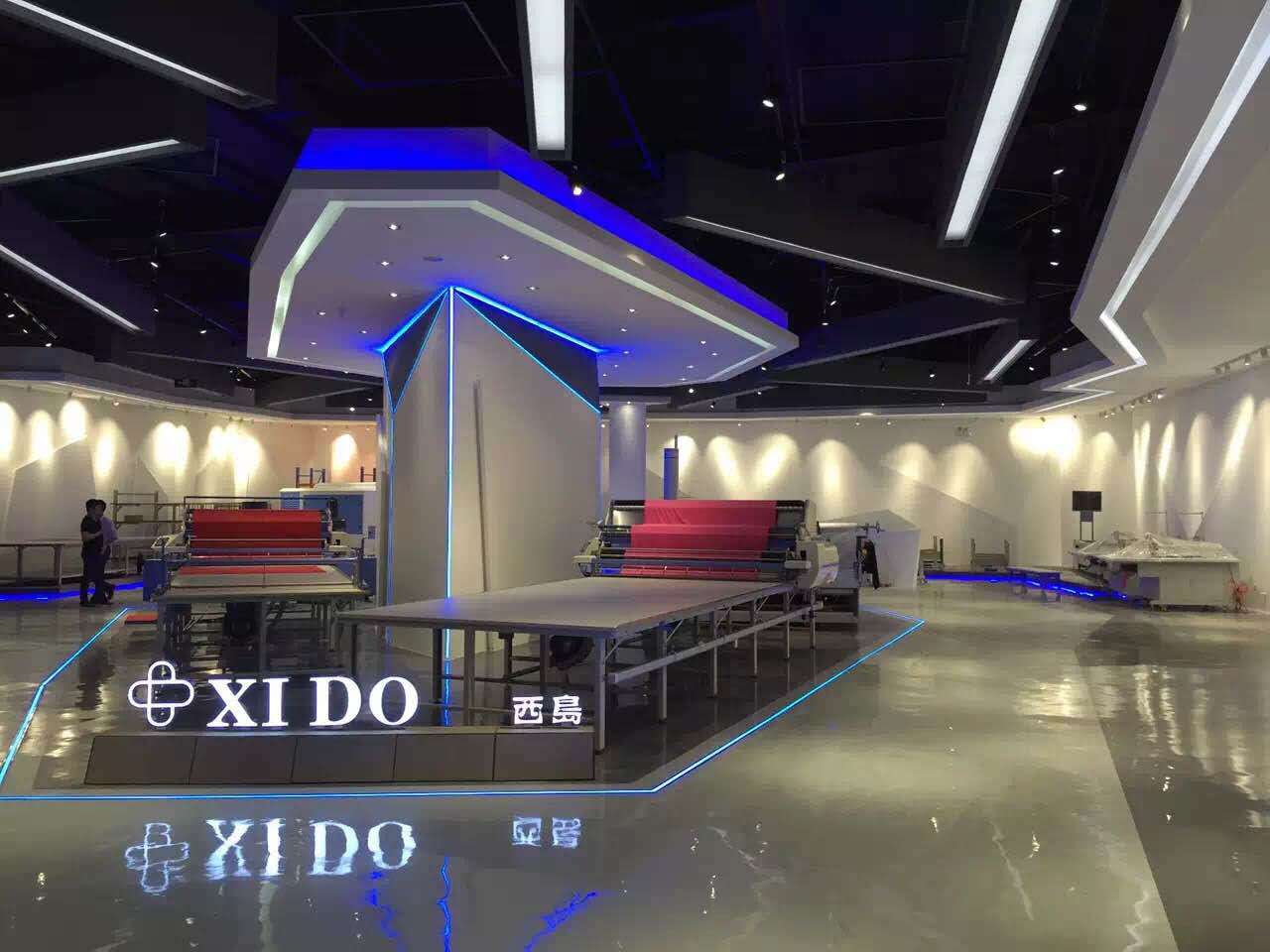

Fully Automatic Duck Down Jacket Filling Machines At Exhibitions
Duck Down Jacket Filling Machine Pre-sale Service:
We provide our customers with 24 HOURS telephone consultation service, and will make response and arrange service within 24 hours in respect of the service request made by the customer through telephone, letter, fax, e-mail or online submission.
Duck Down Jacket Filling Machine After-sale Service:
*Main parts apply SIEMENS, SCHNEIDER, DELTA, could live long. And the quality is rlaible and stable.
*High quality, low maintenance rate
*Make each part standard, could change for you easily
*Technicians help setting up and training workers till they could operate well

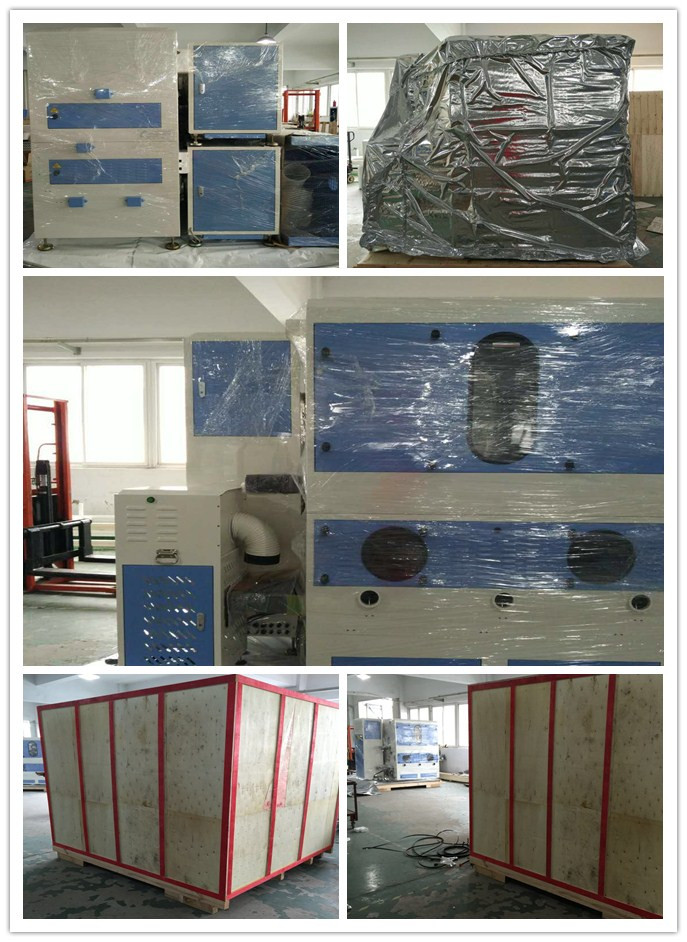

Fully Automatic Duck Down Jacket Filling Machine Packages
