Highly efficient.1-8 seconds for per filling. The triple-weighing system is applied. The cycling weighing pattern enables the continuous down filling.
High quantitative accuracy.0.03g can be reached, the quantitative error is controlled within a certain range, reducing the waste of material, saving material and money.
Labor-saving and easy-operated.A machine is operated by one worker, which can satisfy the needs of 1-3 assembly lines. PLC-Controlled programs equipment the machine with a high degree of automation. By simply inputting the data on the touch screen, the machine will work automatically to get the results you want.
Large data memory.It can save up to 10,000 data in total. It enables both single weight of down filling & multi-weight of down filling.
High air pressureis used to absorb the down into the machine, without damaging the material, well maintaining the original softness, elasticity and texture.
High stability.All the key parts are imported from the best suppliers abroad.
Environment-friendly.All the working processes are happening in a sealed environment, which prevents the down from flying everywhere in the air, keeping the environment clean.
Suggesting Place Space:4m*2.5m*2m( Length*Width*Height)
Machine Air Pressure Requirement
Air Demand:≥ 0.5m³/ Min
Air Pressure: ≥ 0.58Mpa
If the central air supply is applied , the pipe should be placed 20 meters within the machine, the diameter of the pipe be 1 inch wide and above. If the pipe is placed in a further distance, the pipe diameter should be enlarged accordingly in order to avoid the instable down output due to the inadequate air supply
If the independent air supply is applied, the air pump of 3.5kW(1.0Mpa) & above is recommended
We Receive One Hundred Percent Of Good Feekbacks From Our Clients

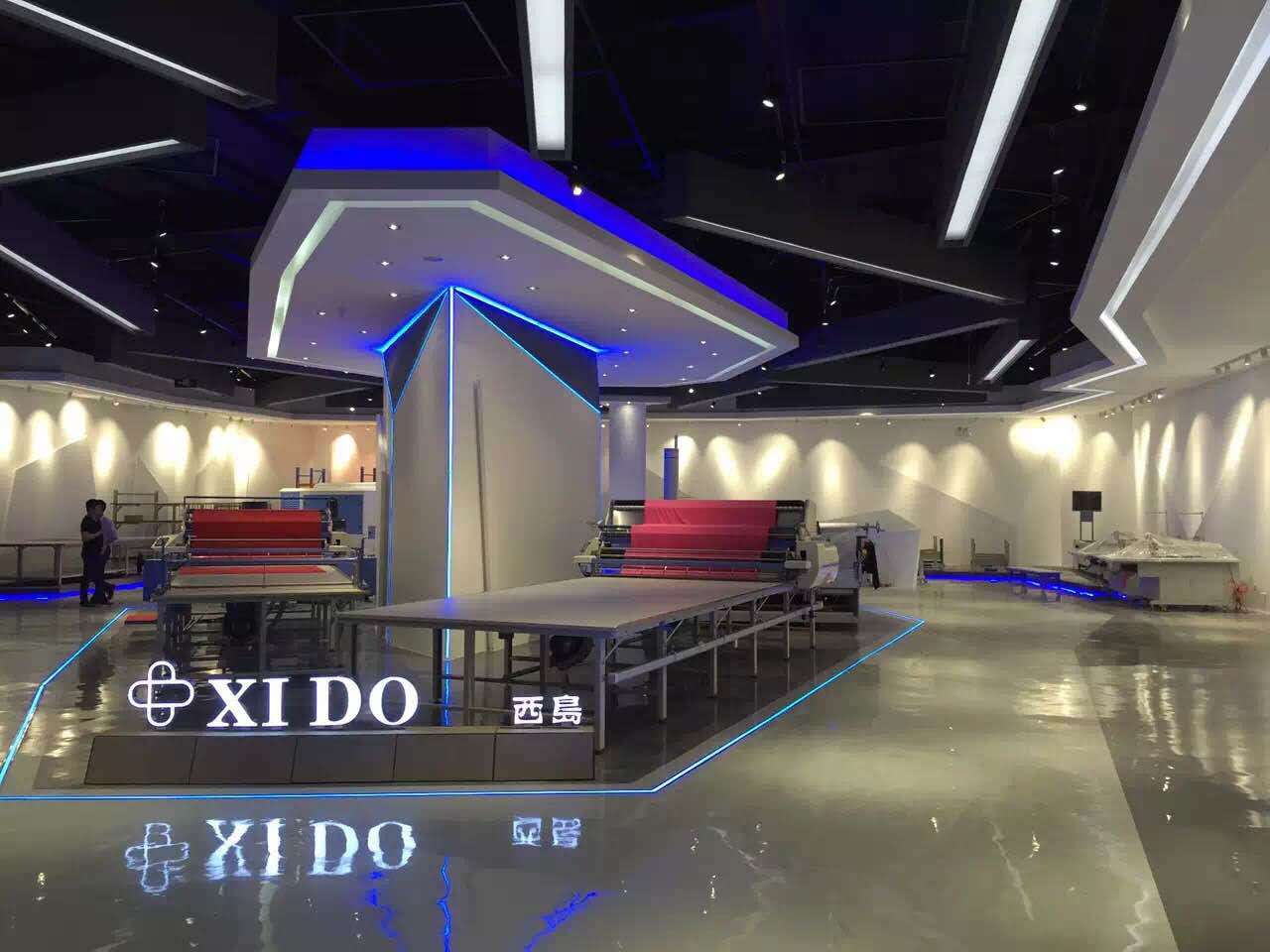

Pictures Taken From One Of The Largest Uniqlo Down Jacket OEM Factory In China
